12g specialized Variable Pump PET Preform Injection Molding Machine Spring nozzle

Name: 12g specialized Variable Pump PET Preform Injection Molding Machine Spring nozzle
Brand: VAINO
Price: 1 USD

Buy cheap 12g specialized Variable Pump PET Preform Injection Molding Machine Spring nozzle product

Brand Name : VAINO

Model Number : K2-130

Certification : CE/ISO9001:2008

Place of Origin : Ningbo,China

MOQ : 1SET

Delivery Time : 15-25 working days after confirm order and received deposit

Packaging Details : Wooden pellet Wooden case(optional)

SHOT VOLUME : 215,263,302

SHOT WEIGHT : 196,239 ,274G

HYDRAULIC EJECTION STROKE : 120 mm

HYDRAULIC EJECTION FORCE : 42kn

MACHINE WEIGHT : 4600

MACHINE DIMENSIONS : 4.6x1.2x1.8

Contact Now

12g specialized Variable Pump PET Preform Injection Molding Machine Spring nozzle

Detailed Product Description

According to the material property of PET and the molding requirements of it,our experienced engineering team design the machine special for the application.The design satisfies all our customers in PET molding production.

Big diameter screw design and Bigger L/D ratio
High plasticization capacity
Entended machine framework,enlarged space between tie-bars,mold opening stroke,mould thickness and ejection stroke
Specialized screw set for PET+FB or slice PET are on request as option
Four or above stages precise temperature PID control for barrel
Spring nozzle for the machine below 650ton,hydraulic nozzle for 650ton,meeting customer’s special requirements by effectively avoid overflow
Dehumidifying dryer selected for PET resin’s special demands of removing moisture
Suitable for both variable pump and servo system

SPECIFICATIONS

SPECIFICATIONS
DESCRIPTION	UNIT	K2-130
INJECTION		A	B	C
SHOT VOLUME	CM3	215	263	302
SHOT WEIGHT	G	196	239	274
(PS)	OZ	6.9	8.4	9.6
SCREW DIAMETER	MM	38	42	45
INJECTION PRESSURE	MPA	193	158	138
SCREW L:D RATIO		22:1	20:1	18.5:1
SCREW STROKE	MM	190
SCREW SPEED (STEPLESS)	R/MIN	0~180
CLAMPING UNIT
CLAMPING FORCE	KN	1300
OPENING STROKE	MM	380
PLATEN SIZE	MM*MM	610*610
SPACE BETWEEN TIE BARS	MM*MM	410*410
MOLD THICKNESS (MIN-MAX)	MM	160~450
MAX.DAYLIGHT	MM	830
HYDRAULIC EJECTION STROKE	MM	120
HYDRAULIC EJECTION FORCE	KN	42
POWER UNIT
HYDRAULIC SYSTEM PRESSURE	MPA	17.5
PUMP MOTOR(V/S)	KW	11/18.5
HEATING CAPACITY	KW	7.7
NUMBER OF TEMP CONTROL ZONES		4+(NOZZLE )
GENERAL
DRY-CYCLE TIME	SEC	1.3
OIL TANK CAPACITY	L	200
MACHINE DIMENSIONS	MXMXM	4.61.21.8
MACHINE WEIGHT	KG	4600

12g specialized Variable Pump PET Preform Injection Molding Machine Spring nozzle

Product Tags:

pet stretch blowing machine

automatic injection molding machine

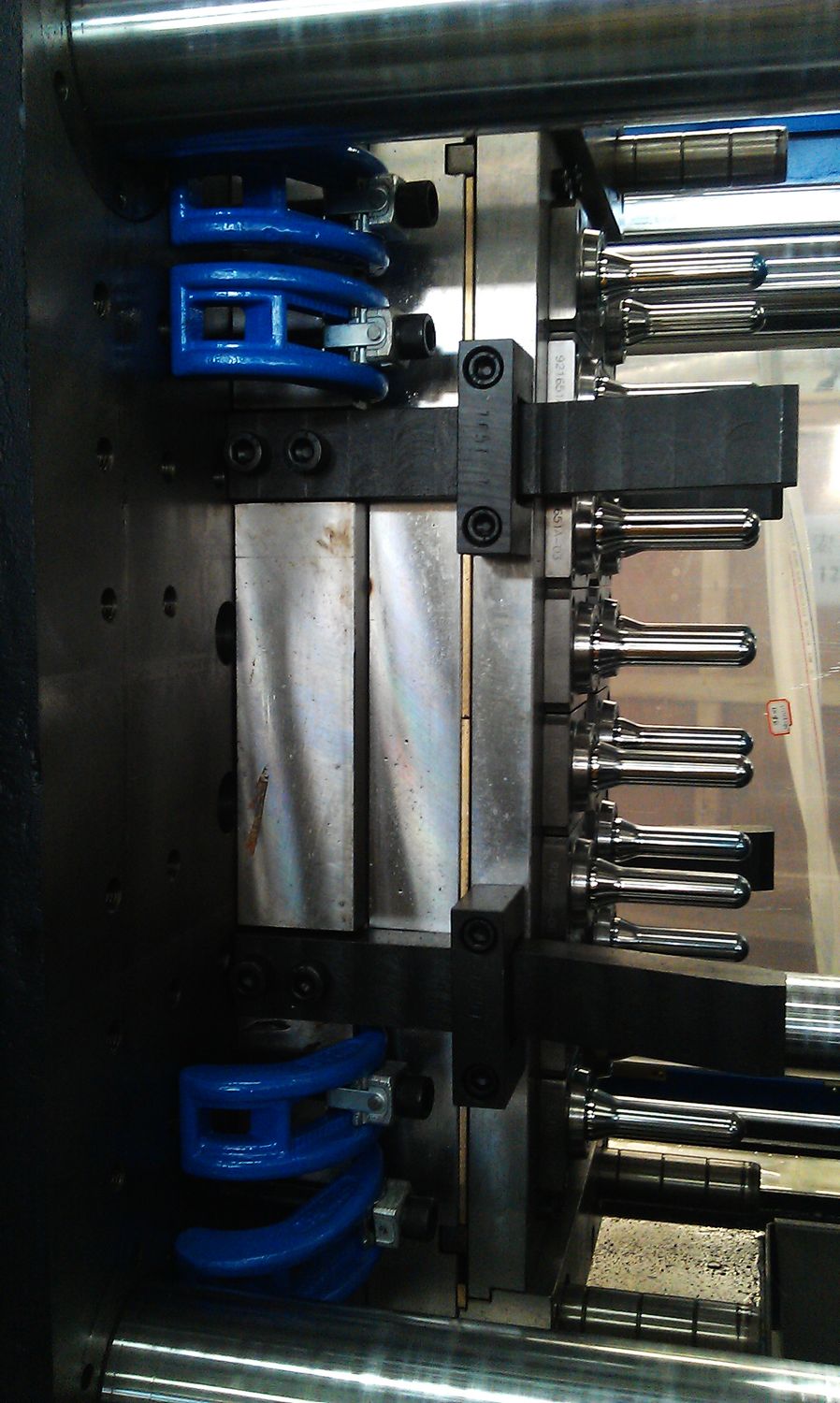

12g specialized Variable Pump PET Preform Injection Molding Machine Spring nozzle Images
