PET Preform plastic injection molding equipment 3.4T High plasticization

VAINO INTERNATIONAL LIMITED
Contact Now

PET Preform plastic injection molding equipment 3.4T High plasticization

  • 1
  • 2
  • 3

Brand Name : MEPER

Model Number : HM-110

Certification : CE/ISO9001:2008

Place of Origin : Ningbo,China

MOQ : 1SET

Price : Please Click Inquiry Button

Delivery Time : 15-60working days

Packaging Details : wooden pallet(standard) wooden case(option)

Injection weight : 153g,171g,211g

material : PET

tie-bar space(mm) : 375*375

machine weight : 3.4T

Payment Terms : T/T, L/C

Contact Now

PET Preform plastic injection molding equipment 3.4T High plasticization



1. feature

According to the material property of PET and the molding requirements of it,our experienced engineering team design the machine special for the application.The design satisfies all our customers in PET molding production.

  1. Big diameter screw design and Bigger L/D ratio
  2. High plasticization capacity
  3. Entended machine framework,enlarged space between tie-bars,mold opening stroke,mould thickness and ejection stroke
  4. Specialized screw set for PET+FB or slice PET are on request as option
  5. Four or above stages precise temperature PID control for barrel
  6. Spring nozzle for the machine below 650ton,hydraulic nozzle for 650ton,meeting customer’s special requirements by effectively avoid overflow
  7. Dehumidifying dryer selected for PET resin’s special demands of removing moisture
  8. Suitable for both variable pump and servo system



2. Specifiation:

  HM-110
INJECTION UNIT  UNIT  A B C
SCREW DIAMETER  mm 34 36 40
 SCREW L/D RETIO  L/D 23.1 21.8 19.6
   INJECTION VOLUME cm3 167 188 232
 INJECTION WEIHGT  g 153 171 211
oz 5.39 6.04 7.46
INJECTION RATE  cm3/ s 84.3 94.5 116.7
 INJECTION PRESSURE Mpa 206 183 149
CREW SPEED rpm 210
 CLAMPING UNIT
 CLAMPING FORCE  kN 1100
MOLD OPEN STROKE  mm 330
 SPACE BETWEEN TIE BARS  mm 375×375
MAX.MOLD HEIGHT  mm 150~380
  EJECTOR STROKE  mm 100
 EJECTOR FORCE  kN 38
OTHERS
 MAX.PUMP PRESSURE  Mpa 16
 PUMP MOTOR POWER kW 13
HEATER POWER kW 7.5
MACHINE DIMENSIONS mm 4.3×1.2×1.75
OIL TANK CAPACITY L 170
MACHINE WEIGHT t 3.1



3.Configuration:





COMPONENT BRAND&ORIGINAL
Fixed pump  Servo
hydraulic system
HYDRAULIC MOTOR INTERMOT-ITALY-CHINA INTERMOT-ITALY-CHINA
SERVO MOTOR CONTROLLER / TONGLING-CHINA
HYD' PUMP FIXED VICKERS-USA OR YUKEN-JAPAN VICKERS-USA OR YUKEN-JAPAN
GEAR PUMP / SUMITOMO-JAPAN
DIRECTION VALVE VICKERS-USA OR YUKEN-JAPAN VICKERS-USA OR YUKEN-JAPAN
PP VALVE HNC-TAIWAN /
MOULD ADJUST MOTOR INTERMOT-ITALY-CHINA INTERMOT-ITALY-CHINA
electric system
CONTROLLER TECHMATION-TAIWAN TECHMATION-TAIWAN
RELAY SCHNEIDER-GERMANY SCHNEIDER-GERMANY
LINEAR TRANSDUCER MIRAN-CHINA MIRAN-CHINA
LIMITED SWITCH SCHNEIDER-GERMANY SCHNEIDER-GERMANY
BREAKER SCHNEIDER-GERMANY  LS-KOREA
ELEC'MOTOR HUANQIU-CHINA /
others
HIGH PRESSURE PIPE GOODYEAR-USA GOODYEAR-USA
SEAL Helate-England Helate-England
AUTO LUBRICATION SL-CHINA SL-CHINA
SCREW AND BARREL 38CrMoAlA-China 38CrMoAlA-China

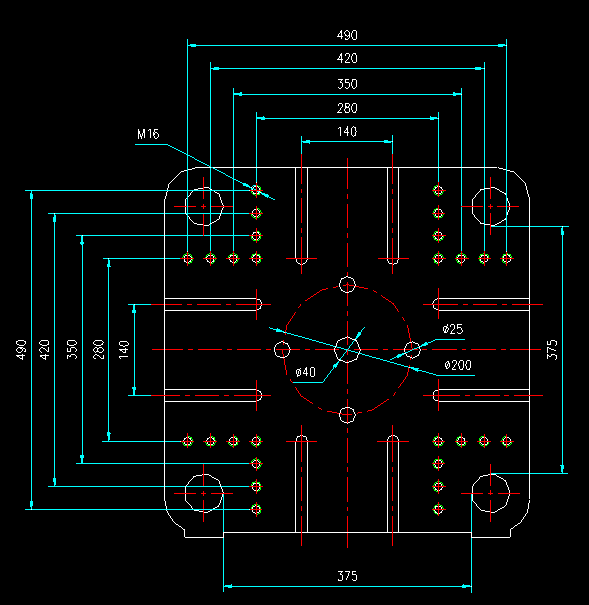

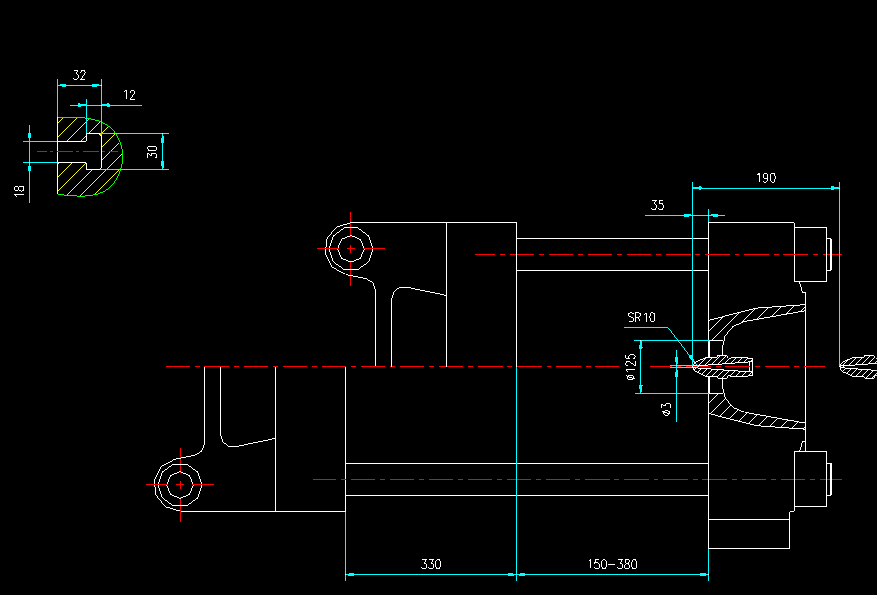

4.Platen drawing

PET Preform plastic injection molding equipment 3.4T High plasticization

PET Preform plastic injection molding equipment 3.4T High plasticization
