High precison control PE PP daily products varibale pump injection molding machine K2-320
Enviromental protection-high energy saving
High performance energy saving result realized the reduction of cost
Not only save energy, but also realized the precise speed and pressure control
High efficiency, lower oil temperature ,make oil talk much smaller, extend the use of hydraulic oil and elements
HIGH ENERGY SAVINGS
Under normal operating conditions,compared with conventional hydraulic injection molding machines,energy saving of 20-80% can be achieved.
MOLDING STABILITY
Compared with conventional injection molding machines,repeatability is greatly improved due to ervo motor closed-loop control
QUICK RESPONSE
Featuring a dynamic servo motor with a response time of only 0.05sec
QUIET OPERATION
Machine runs much lower noise levels, particularly in low speed applications
RELIABLE HOLDING PRESSURE
Compared with traditional hydraulic machine,the holding pressure is more stable and does not have limitation
BETTER OIL TEMPERATRURE STABILITY
The servo system only delivers hydraulic oil as it is needed for the various functions,This prevents unnecessary generation of heat and substantially reduces oil cooling requirements.
SPECIFICATIONS
| SPECIFICATIONS | | | | |
| DESCRIPTION | UNIT | K1-320 |
| INJECTION | | A | B | C |
| SHOT VOLUME | CM3 | 1062 | 1231 | 1414 |
| SHOT WEIGHT | G | 966 | 1120 | 1286 |
| (PS) | OZ | 33.7 | 39.2 | 44.9 |
| SCREW DIAMETER | MM | 65 | 70 | 75 |
| INJECTION PRESSURE | MPA | 175 | 152 | 133 |
| SCREW L:D RATIO | | 21:1 | 21:1 | 19.6:1 |
| SCREW STROKE | MM | 320 |
| SCREW SPEED (STEPLESS) | R/MIN | 0~150 |
| CLAMPING UNIT | | | | |
| CLAMPING FORCE | KN | 3200 |
| OPENING STROKE | MM | 615 |
| PLATEN SIZE | MM*MM | 945*945 |
| SPACE BETWEEN TIE BARS | MM*MM | 660*660 |
| MOLD THICKNESS (MIN-MAX) | MM | 250~670 |
| MAX.DAYLIGHT | MM | 1285 |
| HYDRAULIC EJECTION STROKE | MM | 160 |
| HYDRAULIC EJECTION FORCE | KN | 77 |
| POWER UNIT | | | | |
| HYDRAULIC SYSTEM PRESSURE | MPA | 17.5/36.7 |
| PUMP MOTOR(V/S) | KW | 30/36.7 |
| HEATING CAPACITY | KW | 21.5 |
| NUMBER OF TEMP CONTROL ZONES | | 5+(NOZZLE ) |
| GENERAL | | | | |
| DRY-CYCLE TIME | SEC | 5 |
| OIL TANK CAPACITY | L | 500 |
| MACHINE DIMENSIONS | MXMXM | 6.8*1.6*2.2 |
| MACHINE WEIGHT | KG | 13000 |
Product Tags:
|
|

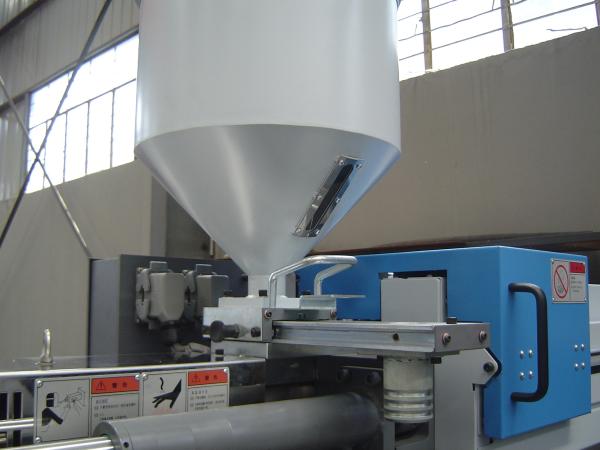

High precison Servo Injection Molding Machine for medical parts Images
|
